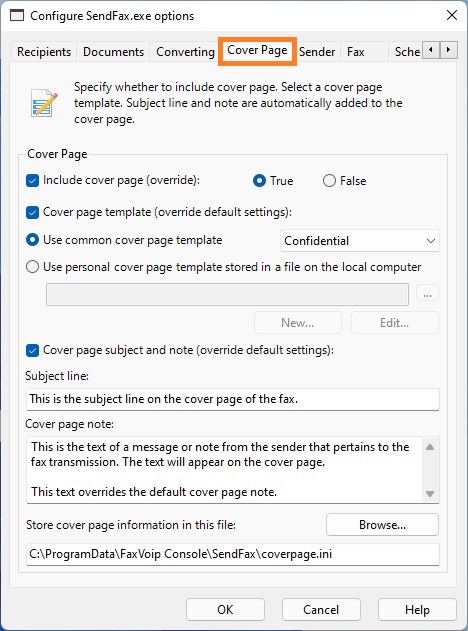

Cover Page Settings


A cover page contains user-specified information about a fax sender and a recipient, and often a short message, together with system information, such as transmission date and time. You can use cover pages in different ways. You can send a fax that consists only of a cover page. Your fax message will be included as a cover page note. Alternatively, you can send a cover page in addition to another fax document. For example, you might fax a Microsoft Word document and include a cover page with it. In this case, the cover page will be added to the document and sent as the first page in the fax.


On this page you can override the default settings for cover page specified in the Cover Pages Settings.


Include cover page (override)

Select this check box to override the default Include cover pages with faxes option specified in the Cover Pages Settings. On the right, select True to include cover page with fax (/CoverPage=true command line option). Or select False to not Include cover page with fax (/CoverPage=false command line option). To send a fax consisting only of a cover page, select the check box and then select True on the right (/CoverPage=true is a required command line option in this case).


Cover page template (override default settings)

Select this check box to override the default coverpage template specified in the Cover Pages Settings. The modified settings are stored in the [Template] section of the custom ini-file (/CoverInfo= command line option).


Use common cover page template

If this option selected, the common cover page template stored on the fax server will be used. You can choose one of the following predefined templates: Confidential, FYI, Generic and Urgent. Common cover page files are usually stored in the following folder: C:\ProgramData\Microsoft\Windows NT\MSFax\Common Coverpages. Please note that these are standard templates included in the operating system.

Use personal cover page template stored in a file on the local computer

If this option selected, the specified personal cover page template stored in a file on the local computer will be used. Click the button to the right of the text box to choose the desired cover page template. Personal cover page files are usually stored in the Personal CoverPages folder: C:\Users\<Account Name>\Documents\Fax\Personal CoverPages, but you can save your cover page template in any other folder on your hard drive and then specify it in the Fax Voip T.38 Console settings.

<New...>

Click to create new personal cover page template using Fax Cover Page Editor application. By default new template is stored in the Personal CoverPages folder. Alternatively, you can create and manage your personal cover pages using Windows Fax and Scan software (Tools -> Cover Pages... ).

<Edit...>

Click to open the selected cover page template in the Fax Cover Page Editor application.


Cover page subject and note (override default settings)

Select this check box to override the default coverpage subject and note specified in the Cover Pages Settings. The modified settings are stored in the [Content] section of the custom ini-file (/CoverInfo= command line option).


Subject line

In this box, you can specify the fax subject. This information is usually displayed on cover page. You can leave this field empty.

Cover page note

In this box, you can specify the text of a message or note from the sender that will appear on the cover page. You can leave this field empty.


Store cover page information in this file

The full path to the custom ini-file that contains information for creating the cover page (/CoverInfo= command line option).

<Browse>

Click this button to specify the path to the custom ini-file in which the cover page information is stored. The default path is *{CommonAppDataFolder}\FaxVoip Console\SendFax\coverpage.ini.


Notes
