Creating or editing Store in a folder rules

Parent Previous Next

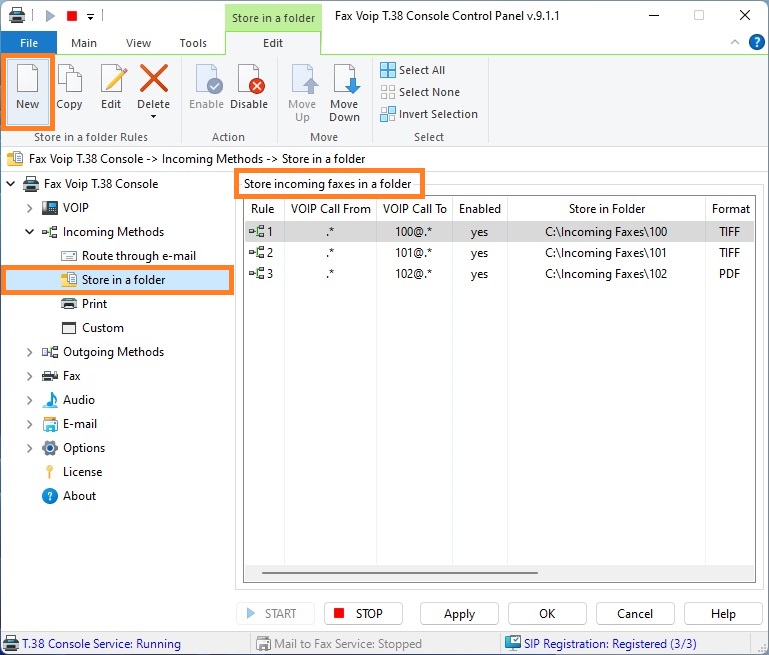

1.     Open Fax Voip T.38 Console Control Panel.

2.     Click Incoming Methods in TreeView, then click Store in a folder.



3.     To create new rule click New. To edit an existing rule select it and click Edit (or double-click the selected rule).

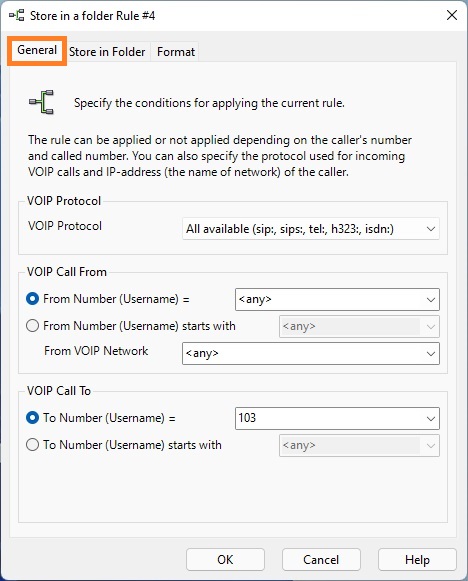

4.     In the Store in a folder Rule window in the General panel, in the VOIP Protocol area, select the type of incoming calls, can be All available, SIP, H.323 or ISDN CAPI 2.0. Specify the conditions under which this rule applies (in the VOIP Call From and VOIP Call To sections). More details can be found in the chapter Store in a folder Settings, General Settings section.

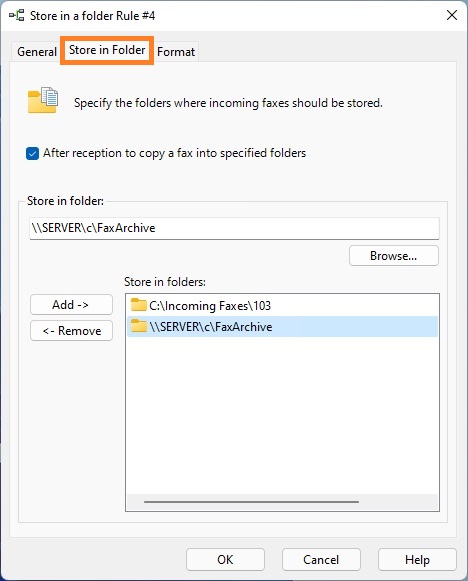

5.     Switch to the Store in Folder panel.

6.     In the Store in Folder panel, check After reception to copy a fax into specified folders to enable rule. In the Store in Folder area, specify folders where to store incoming faxes. The folder should be initially selected or typed in the text field and then added to the Store in folders list by using <Add> button. More details can be found in the chapter Store in a folder Settings, Store in Folder settings section.

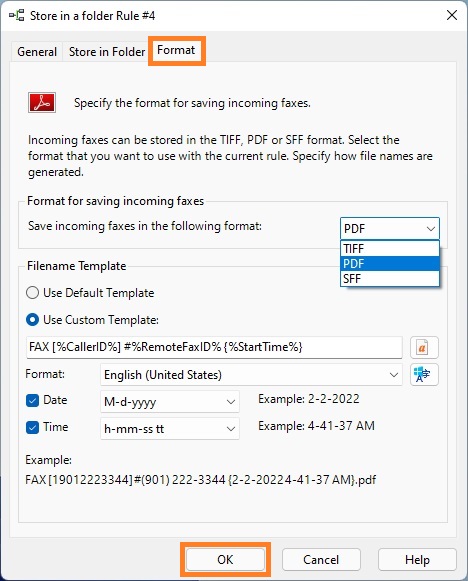

7.     Switch to the Format panel.

8.     In the Format panel select format for saving incoming faxes, TIFF, PDF or SFF. Specify how file names are generated. More details can be found in the chapter Store in a folder Settings, Format Settings section.



9.     Click <OK> button to fix changes.

10.     To change the preference order for Store in a Folder Incoming Routing rules use Move Up and Move Down commands. One of the entries should be selected.

11.     Click <Apply> button to save modified settings for Store in a Folder Incoming Routing. Do not forget to restart Fax Voip T.38 Console to operate with new settings. To do this click <STOP> button, then click <START> button.
