Creating or editing Print rules

Parent Previous Next

1.     Open Fax Voip T.38 Console Control Panel.

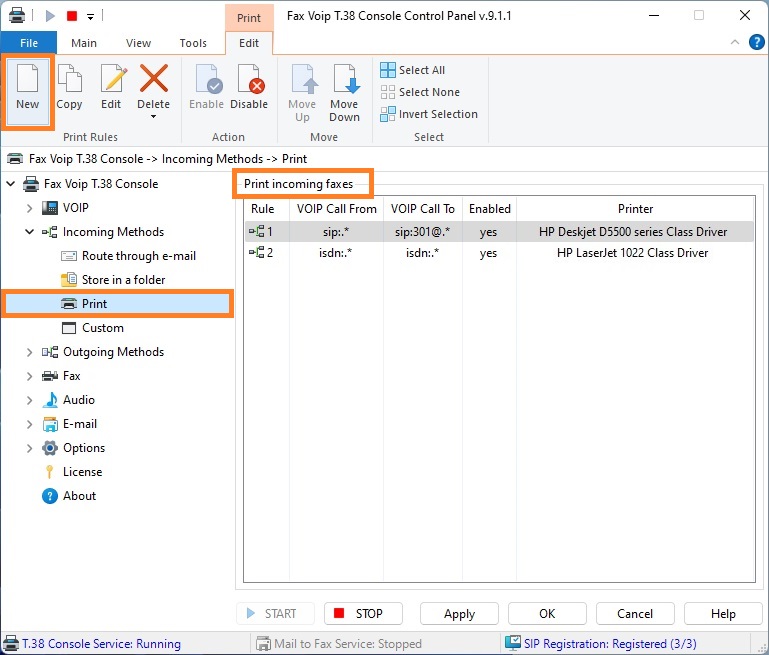

2.     Click Incoming Methods in TreeView, then click Print.



3.     To create new rule click New. To edit an existing rule select it and click Edit (or double-click the selected rule).

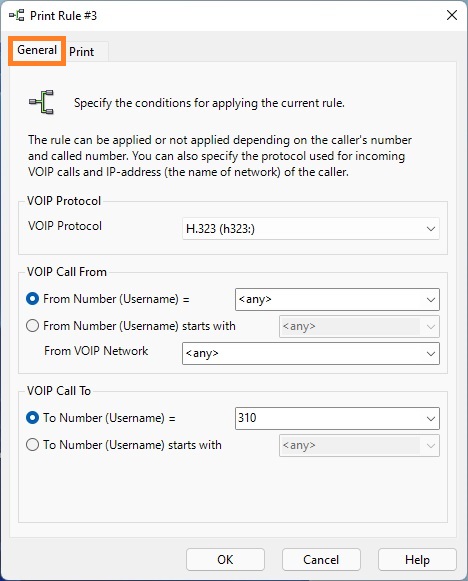

4.     In the Print Rule window in the General panel, in the VOIP Protocol area, select the type of incoming calls, can be All available, SIP, H.323 or ISDN CAPI 2.0. Specify the conditions under which this rule applies (in the VOIP Call From and VOIP Call To sections). More details can be found in the chapter Print Routing Settings, General Settings section.



5.     Switch to the Print panel.

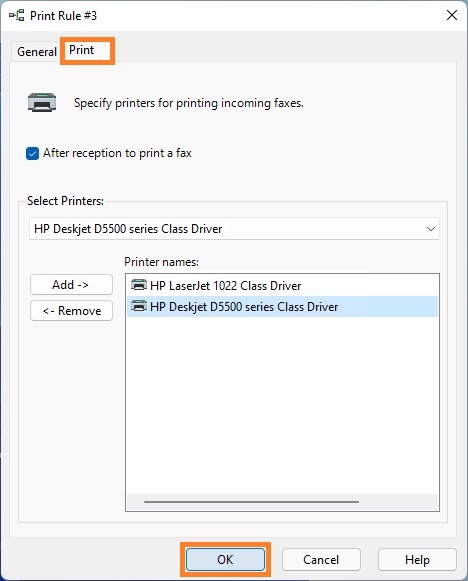

6.     In the Print panel, check After reception to print a fax to enable rule. in the Select Printers area, specify printers. The printer should be initially selected and then added to the Printer names list by using <Add> button. More details can be found in the chapter Print Routing Settings, Print settings section.



7.     Click <OK> button to fix changes.

8.     To change the preference order for Print Incoming Routing rules use Move Up and Move Down commands. One of the entries should be selected.

9.     Click <Apply> button to save modified settings for Print Incoming Routing. Do not forget to restart Fax Voip T.38 Console to operate with new settings. To do this click <STOP> button, then click <START> button.
