To prepare fax document

Fax On Demand ››
Parent Previous Next

When using Fax-On-Demand function, fax documents should be prepared in advance and stored on your hard drive. The document must be prepared in the TIFF format compatible with Fax Voip T.38 Console. Tools built into Fax Voip T.38 Console allow to create and save TIFF fax documents in required format. There are 2 methods to create and save correct TIFF file.


To create fax document using Fax Voip Printer follow instructions in the Send a Fax with Fax Voip Printer chapter:


1.     Open the document you want to save in TIFF fax format.

2.     On the File menu, click Print. On the Print dialog box, select printer Fax Voip. Then, click Print.

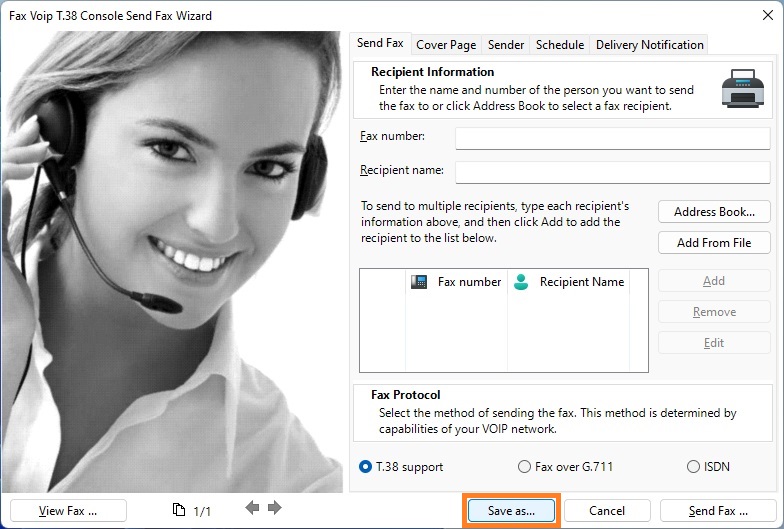

3.     In the Fax Voip T.38 Console Send Fax Wizard, click Save As button.



4.     In the Save as... dialog box select the path where you want to save the fax, enter fax file name and then click Save button.

5.     Close Fax Voip T.38 Console Send Fax Wizard window.


To create fax document using Fax Voip T.38 Console follow instructions in the Send a Fax from Console chapter:


1.     Click Start, point to Fax Voip T.38 Console, and then click Fax Voip Console.

2.     On the File menu, click New Fax.

3.     Select document you want to save in TIFF fax format, then click Open.

4.     In the Fax Voip T.38 Console Send Fax Wizard, click Save As button.

5.     In the Save as... dialog box select the path where you want to save the fax, enter fax file name and then click Save button.

6.     Close Fax Voip T.38 Console Send Fax Wizard window.
