Configure SMTP, POP3 and IMAP with Microsoft (Office 365, Hotmail, Outlook.com) account using OAuth 2.0

Parent Previous Next

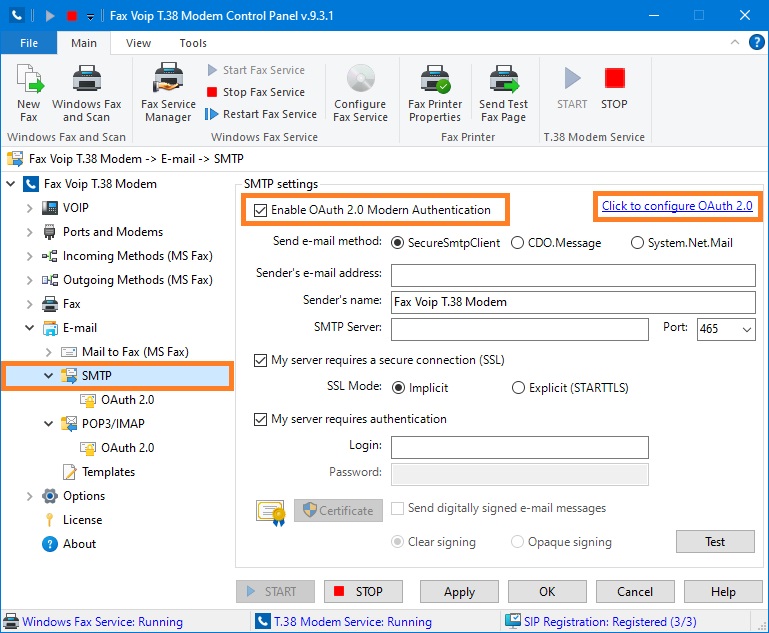

1.     Open Fax Voip T.38 Modem Control Panel. Click E-mail in TreeView, then click SMTP. On the SMTP settings page, select the Enable OAuth 2.0 Modern Authentication checkbox.

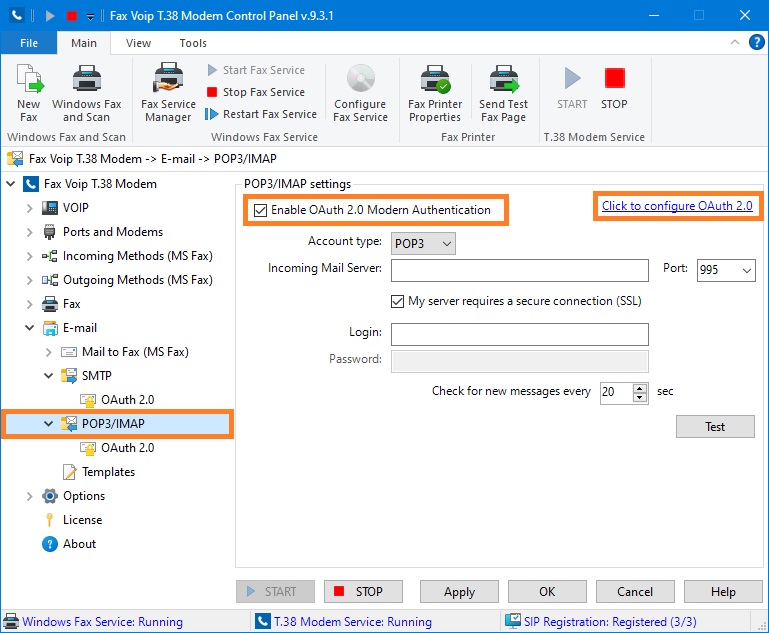

2.     Click E-mail in TreeView, then click POP3/IMAP. On the POP3/IMAP settings page, select the Enable OAuth 2.0 Modern Authentication checkbox.

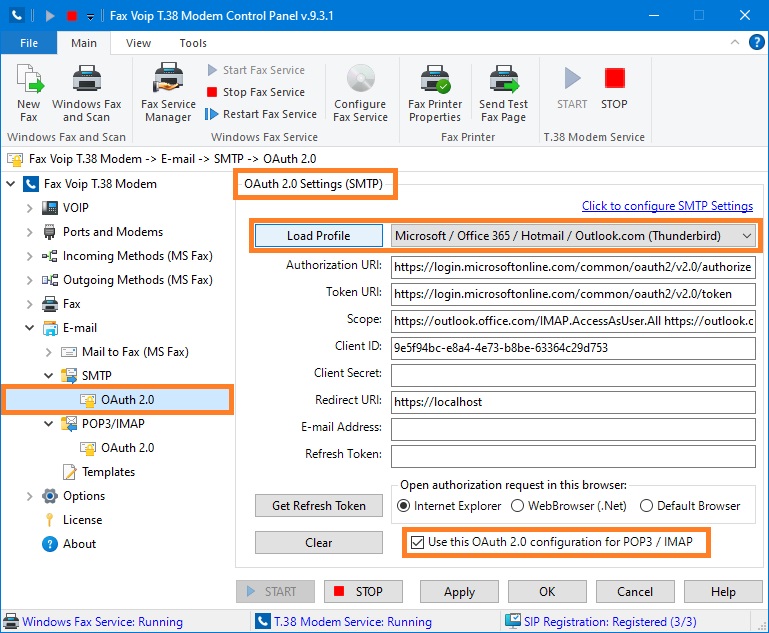

3.     Click E-mail in TreeView, then click SMTP, then click OAuth 2.0. On the OAuth 2.0 Settings (SMTP) page, select Use this OAuth 2.0 configuration for POP3 / IMAP checkbox. Select Microsoft / Office 365 / Hotmail / Outlook.com (Thunderbird) or Microsoft / Office 365 / Hotmail / Outlook.com (MS Oauth Test) from the drop-down list, and then click <Load Profile> button.



4.     In the E-mail Address text box, enter e-mail address associated with your Microsoft account. In the Open authorization request in this browser area, select either WebBrowser (.Net) or Internet Explorer. If Microsoft / Office 365 / Hotmail / Outlook.com (MS Oauth Test) was selected, you can also select Default Browser. Click <Get Refresh Token> button.

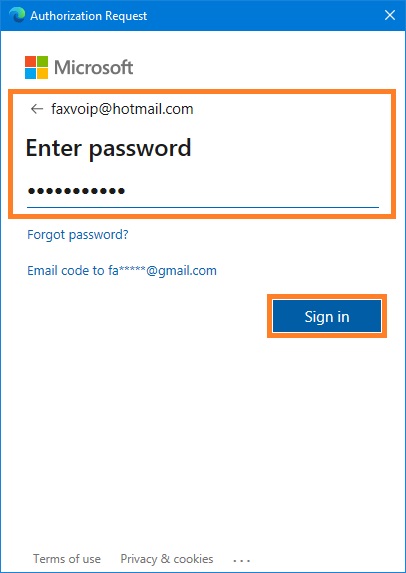

5.     In the web browser window, enter your password and click Sign in.

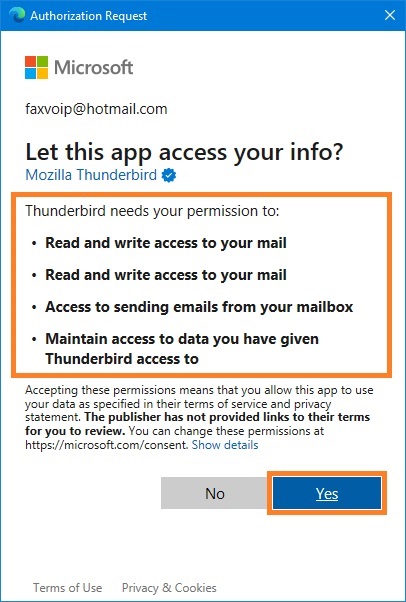

6.     On the next page, click Yes to confirm the requested access to your Microsoft account mailbox.



7.     If Default Browser option was selected, close the web browser window manually.

8.     Make sure the Refresh Token has been generated successfully. Click <Apply> button to save your settings and Refresh Token.

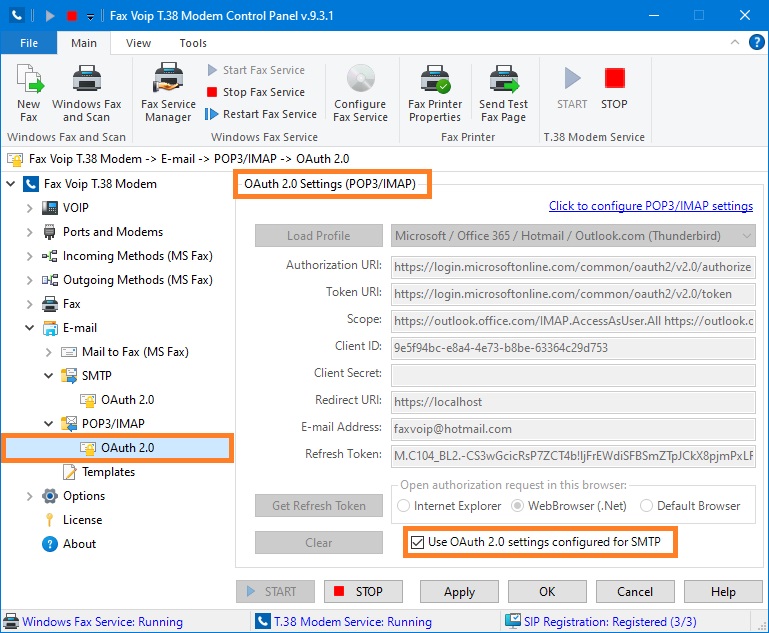

9.     Click E-mail in TreeView, then click POP3/IMAP, then click OAuth 2.0. To use 2 different e-mail accounts for outgoing and incoming e-mail messages, uncheck the Use OAuth 2.0 settings configured for SMTP checkbox, and then repeat steps 3-8 for OAuth 2.0 Settings (POP3 / IMAP).

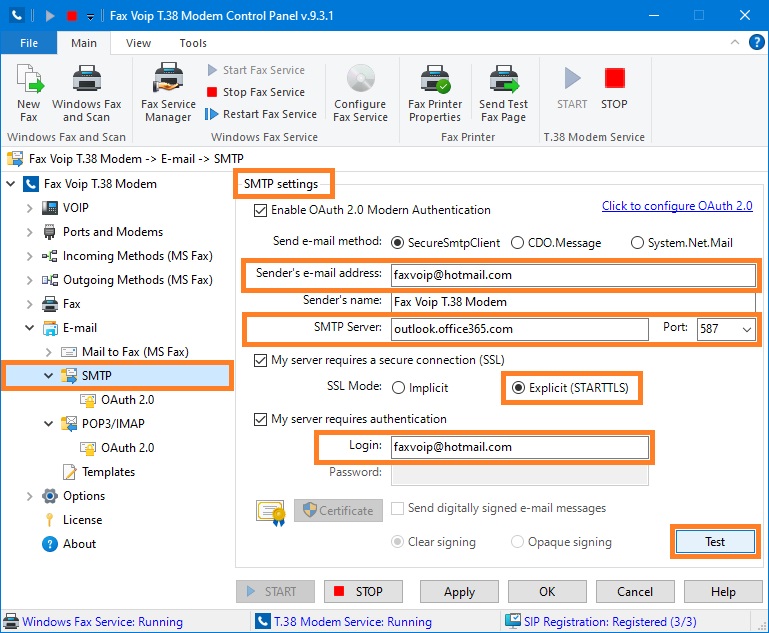

10.     Click E-mail in TreeView, then click SMTP. Make sure the following settings are configured:


Enable OAuth 2.0 Modern Authentication: YES

Send e-mail method: SecureSmtpClient

Sender's e-mail address: the e-mail address associated with your Microsoft account

SMTP Server: outlook.office365.com

Port: 587

My server requires a secure connection (SSL): YES

SSL Mode: Explicit (STARTTLS)

My server requires authentication: YES

Login: the e-mail address associated with your Microsoft account


Click <Test> button to send test e-mail message, see also Testing e-mail sending.

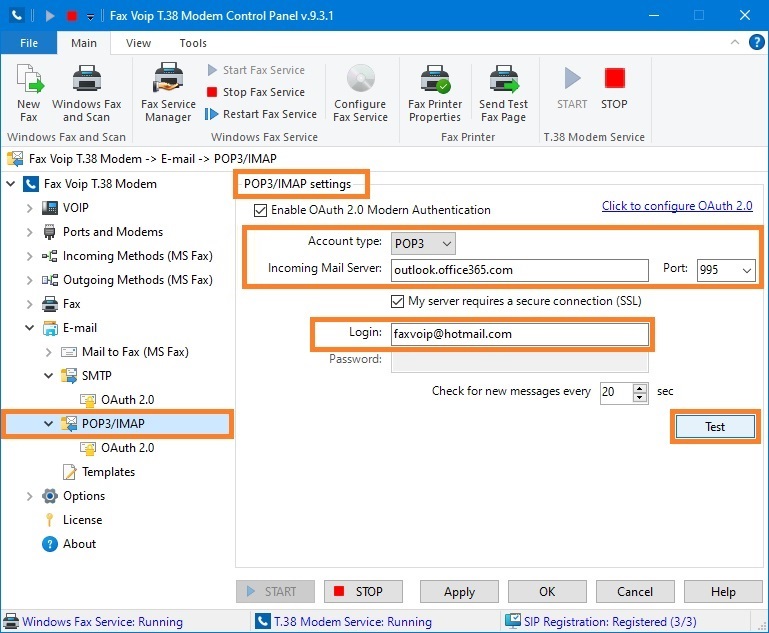

11.      Click E-mail in TreeView, then click POP3/IMAP. Make sure the following settings are configured (POP3):


Enable OAuth 2.0 Modern Authentication: YES

Account type: POP3

Incoming Mail Server: outlook.office365.com

Port: 995

My server requires a secure connection (SSL): YES

Login: the e-mail address associated with your Microsoft account


Click <Test> button to test POP3 connection, see also Testing POP3 / IMAP Settings.

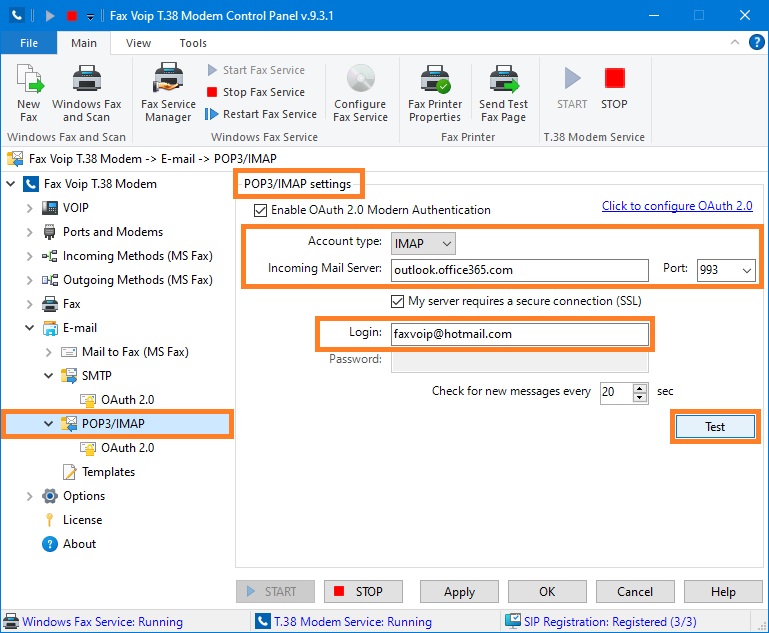

12.      To use IMAP protocol to receive e-mail messages, use the following settings:


Enable OAuth 2.0 Modern Authentication: YES

Account type: IMAP

Incoming Mail Server: outlook.office365.com

Port: 993

My server requires a secure connection (SSL): YES

Login: the e-mail address associated with your Microsoft account


Click <Test> button to test IMAP connection, see also Testing POP3 / IMAP Settings.
