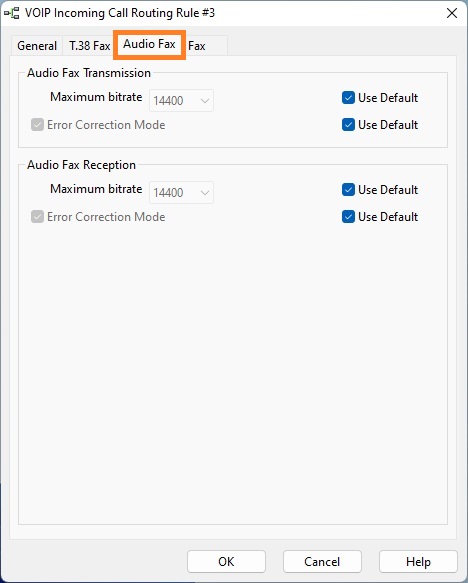

Audio Fax Settings


Audio Fax Transmission

The options, specified in this area, allow you to override default Audio Fax Transmission settings.


Maximum bitrate

Use this option to change Maximum bitrate for outgouing audio faxes (Fax over G.711 codec). Maximum bitrate value can be set 14400/9600/4800 which corresponds to rate limits of standard protocols used for facsimile. This option overwrites the default maximum bitrate, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Transmission=>Maximum bitrate” field (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Transmission=>Maximum bitrate” field (in the case of H.323).


Use default

To change Maximum bitrate, uncheck this option. If this option is checked, the default Maximum bitrate value is used.

Error Correction Mode

Possibility to use Error Correction Mode for outgouing audio faxes (Fax over G.711 codec). This option overwrites the default settings, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Transmission=>Enable Error Correction Mode” (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Transmission=>Enable Error Correction Mode” (in the case of H.323).


Use default

To change default Error Correction Mode settings, uncheck this option. If this option is checked, the default settings are used.


Audio Fax Reception

The options, specified in this area, allow you to override default Audio Fax Reception settings.


Maximum bitrate

Use this option to change Maximum bitrate for incoming audio faxes (Fax over G.711 codec). Maximum bitrate value can be set 14400/9600/4800 which corresponds to rate limits of standard protocols used for facsimile. This option overwrites the default maximum bitrate, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Reception=>Maximum bitrate” field (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Reception=>Maximum bitrate” field (in the case of H.323).


Use default

To change Maximum bitrate, uncheck this option. If this option is checked, the default Maximum bitrate value is used.

Error Correction Mode

Possibility to use Error Correction Mode for incoming audio faxes (Fax over G.711 codec). This option overwrites the default settings, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Reception=>Enable Error Correction Mode” (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Reception=>Enable Error Correction Mode” (in the case of H.323).


Use default

To change default Error Correction Mode settings, uncheck this option. If this option is checked, the default settings are used.
