Convert to Fax Settings (SendFax.exe options)

Parent Previous Next

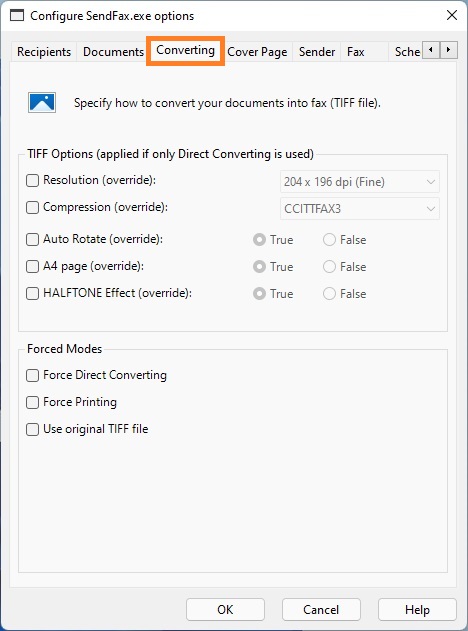

Convert to Fax Settings


On this page you can specify how to convert your documents into fax (TIFF file).


TIFF Options (applied if only Direct Converting is used)

In this area, you can override the default TIFF Options specified in the Fax Converter settings. These options only applied if the fax is created using Direct Converting. The /Resolution and /Compression options are also applied when sending a fax consisting only of a cover page.


Resolution (override)

Select this check box to override the default value specified in the Fax Converter settings. On the right, select 204x196 dpi (Fine) to send a fax in high-quality resolution (/Resolution=204x196 command line option). Or select 204x98 dpi (Normal) to send a fax in low-quality resolution (/Resolution=204x98 command line option). When sending a fax consisting only of a cover page, this option overrides the default value specified in the Cover Pages Settings.

Compression (override)

Select this check box to override the default value specified in the Fax Converter settings. On the right, select the compression format of the output TIFF file (/Compression= command line option). When sending a fax consisting only of a cover page, this option overrides the default value specified in the Cover Pages Settings.

Auto Rotate (override)

Select this check box to override the default value specified in the Fax Converter settings. On the right, select True to apply automatic orientation selection algorithm (/AutoRotate=true command line option). Or select False to not use automatic orientation selection algorithm (/AutoRotate=false command line option).

A4 page (override)

Select this check box to override the default value specified in the Fax Converter settings. On the right, select True to set the page width and height to A4 page format (/A4Page=true command line option). Or select False to not control the page height (/A4Page=false command line option).

HALFTONE Effect (override)

Select this check box to override the default value specified in the Fax Converter settings. On the right, select True to apply HALFTONE Effect to the fax (/HALFTONE=true command line option). Or select False to not apply HALFTONE Effect to the fax (/HALFTONE=false command line option).


Forced Modes

The options below allow you to ignore the default Fax Converter settings.


Force Direct Converting

Select this check box to create the fax using Direct Converting function (/ForceDirectConvert command line option). Fax Converter settings are ignored. Can be applied only with the following file types: pdf, tif(tiff), sff, qfx, bmp, jpg(jpeg), gif, png, ico, wmf(emf).

Force Printing

Select this check box to create the fax using Fax Voip Virtual Printer (/ForcePrint command line option). Fax Converter settings are ignored. If printing fails, the SendFax.exe utility will attempt to create the fax using Direct Converting function.

Use original TIFF file

Select this check box to use original TIFF file (/UseOriginalTIFF command line option). Applicable to the case when the single original document is in the TIFF format compatible with Fax Voip T.38 Console. To create such a file, you can use the Save As option when printing to Fax Voip printer. If to specify this option with TIFF in wrong format, fax transmission will fail.
