Cover Pages Settings (SendFax.exe)

Parent Previous Next

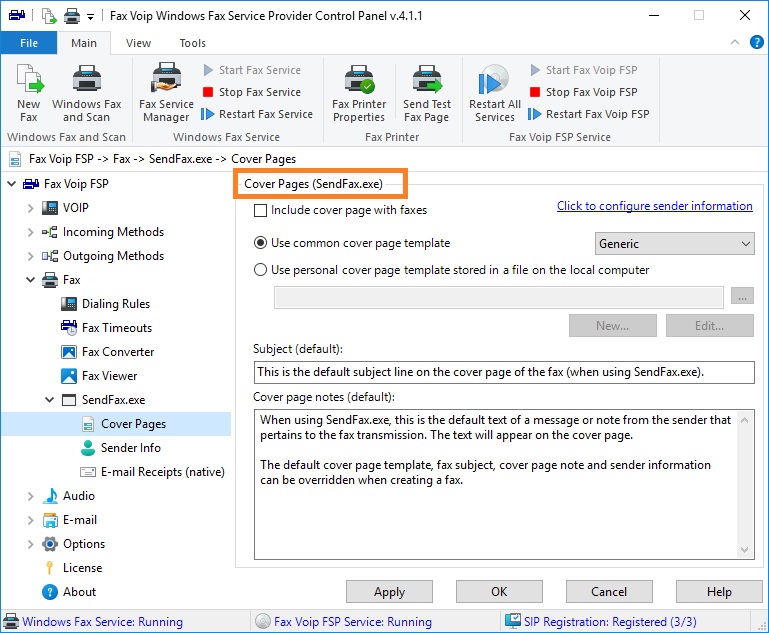

On this page you can specify default cover page settings that will be used when sending a fax using SendFax.exe command line utility.


A cover page contains user-specified information about a fax sender and a recipient, and often a short message, together with system information, such as transmission date and time. You can use cover pages in different ways. You can send a fax that consists only of a cover page. Your fax message will be included as a cover page note. Alternatively, you can send a cover page in addition to another fax document. For example, you might fax a Microsoft Word document and include a cover page with it. In this case, the cover page will be added to the document and sent as the first page in the fax.



The options below can be overridden by the /CoverPage and /CoverInfo command line options, see in the SendFax.exe command line options and Cover Pages Settings (SendFax.exe options) chapters of this user manual.


Click to configure sender information

Click to switch to the Sender Information (SendFax.exe) page to configure default sender information that will be used when using SendFax.exe utility.


Include cover page with faxes

Specifies whether the cover page will be added to the document and sent as the first page in the fax when using SendFax.exe utility.


Use common cover page template

If this option selected, the common cover page template stored on the fax server will be used. You can choose one of the following predefined templates: Confidential, FYI, Generic and Urgent. Common cover page files are usually stored in the following folder: C:\ProgramData\Microsoft\Windows NT\MSFax\Common Coverpages.

Use personal cover page template stored in a file on the local computer

If this option selected, the specified personal cover page template stored in a file on the local computer will be used. Click the button to the right of the text box to choose the desired cover page template. Personal cover page files are usually stored in the Personal CoverPages folder: C:\Users\<Account Name>\Documents\Fax\Personal CoverPages, but you can save your cover page template in any other folder on your hard drive and then specify it in the Fax Voip FSP settings.

<New...>

Click to create new personal cover page template using Fax Cover Page Editor application. By default new template is stored in the Personal CoverPages folder. Alternatively, you can create and manage your personal cover pages using Windows Fax and Scan software (Tools -> Cover Pages... ).

<Edit...>

Click to open the selected cover page template in the Fax Cover Page Editor application.


Subject (default)

In this box, you can specify the default fax subject that will be used when using SendFax.exe utility. This information is usually displayed on cover page. You can leave this field empty.

Cover page notes (default)

In this box, you can specify the default text of a message or note from the sender that will appear on the cover page (when using SendFax.exe utility). You can leave this field empty.
