SMTP Settings (Windows Fax Service)

Parent Previous Next

To configure SMTP settings to be used with Native E-mail Delivery Receipts functionality, follow these steps:


1.     Open Fax Voip T.38 Modem Control Panel.

2.     Click Fax in TreeView, then click SendFaxMS.exe (MS Fax), then click E-mail Receipts (native).

3.     Click <Configure SMTP> button.

4.     In the SMTP Settings (Windows Fax Service) window, configure the SMTP settings.

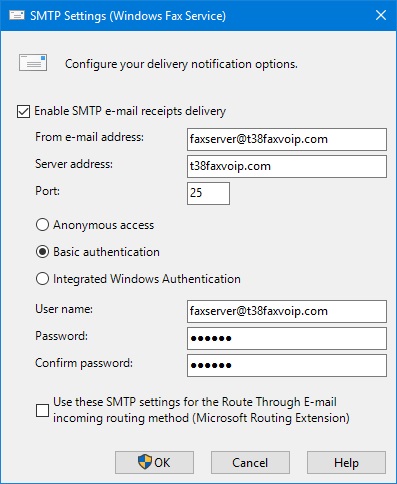

SMTP Settings (Windows Fax Service)


Enable SMTP e-mail receipts delivery

Select this check box to enable sending delivery reports through SMTP mail.

From e-mail address

The e-mail address from which the mail message receipt will be sent.

Server address

The name of the SMTP server from which the receipts will be sent.

Port

The SMTP port number, usually 25.


Anonymous access

The server sends fax transmission receipts using a nonauthenticated SMTP protocol. Usually not used.

Basic authentication

The server sends fax transmission receipts using a basic (plain text) authenticated SMTP protocol. User name and Password are required. You should usually select this option.

Integrated Windows Authentication

The server sends fax transmission receipts using an NTLM-authenticated SMTP protocol. User name and Password are required. Usually not used.


User name

The SMTP user name used for authenticated connections. This is usually the same as the part of e-mail address to the left of the at sign (@).

Password

The SMTP password used for authenticated connections.

Confirm password

This field is used to confirm the SMTP password.


Use these SMTP settings for the Route Through E-mail incoming routing method (Microsoft Routing Extension)

Indicates whether to use the above SMTP settings for the Microsoft Routing Extension, which allows incoming faxes to be routed to e-mail addresses (native functionality).


5.      Click <OK> button to save your settings. All the changes are applied immediately. Administrator privileges are required.


Notes
