When sending faxes, you can configure selective print-out of the outgoing faxes by using Print Outgoing Routing Method. Depending on the recipient's fax number, the name of the computer user account who submitted the fax job, and the success or failure of sending the fax, outgoing fax can be printed to different printers.


The behavior is defined by the so-called rules. Fax Voip FSP always checks Print rules, starting with the rule # 1. The fax will be routed according to the first rule, which satisfies the specified conditions. All other rules are ignored. For example, if rule # 1 applies for outgoing faxes ('Fax Number' = .*; 'Account' = .*; 'OK' = yes;  'Failed' = yes), then other rules # 2, # 3, etc. applied to outgoing faxes never be able to work under any conditions.


Every rule can be enabled or disabled. If the rule is disabled, Fax Voip FSP takes this rule into account (as in the case of enabled) but does not print faxes. This can be used to temporarily disable printing for specified recipient's fax number or fax account.


To print outgoing fax to the specified printer, you must:



Outgoing fax can be routed to one or more printers.


The maximum supported number of Print rules is specified by the current license. The rules that can not be used in the current configuration of the program are always highlighted in red and ignored.


To view Print outgoing fax routing method log, use Enable Outgoing Routing Methods debug logging option, see more details in the Outgoing Routing Methods Logs chapter of this user manual.

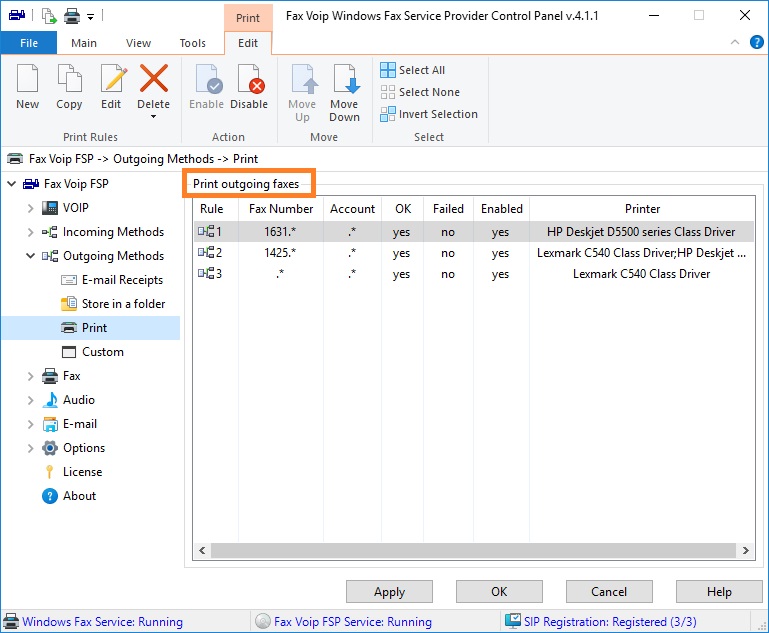

Print outgoing faxes table contains the following information:


Rule

Unique number of the current rule.

Fax Number

Specifies the recipient's fax number pattern for which the rule applies.

Account

Specifies the name of the computer user account (fax account) who submitted the fax job for which the current rule applies. The rule can be applied to single fax account or to all fax accounts.

OK

Specifies whether the rule applies for successfully sent faxes.

Failed

Specifies whether the rule applies for failed fax sending.

Enabled

Specifies whether outgoing fax printing enabled or disabled. If the rule is disabled, Fax Voip FSP takes this rule into account (as in the case of enabled) but does not print faxes. This can be used to temporarily disable printing for specified recipient's fax number or fax account.

Printer

Displays printers for printing outgoing faxes.



The following commands are available in the Print Contextual Tab of the Ribbon:


Print Rules

New (Ctrl + N)

Click to create new Print rule.

Edit (Ctrl + E)

Click to edit Print rule. One of the entries should be selected. Alternatively you can double-click the selected entry.

Delete (Del)

Click to delete one or more Print rules. One or more entries should be selected.

Delete (Del)

Click to delete one or more Print rules. One or more entries should be selected.

Delete All

Click to delete all rules in the list.

Move

Use the commands below to change preference order for different Print rules. One of the entries should be selected.

Move Up (Ctrl + U)

Move the selected rule up.

Move Down (Ctrl + D)

Move the selected rule down.

Select

Select All (Ctrl + A)

Click to select all the entries in the list.

Select None (Ctrl + O)

Click to unselect all the entries in the list.

Invert Selection (Ctrl + I)

Click to invert the selected entries in the list.


Most of the commands placed on the Print Contextual Tab are also available from the context menu of the list.


Notes
